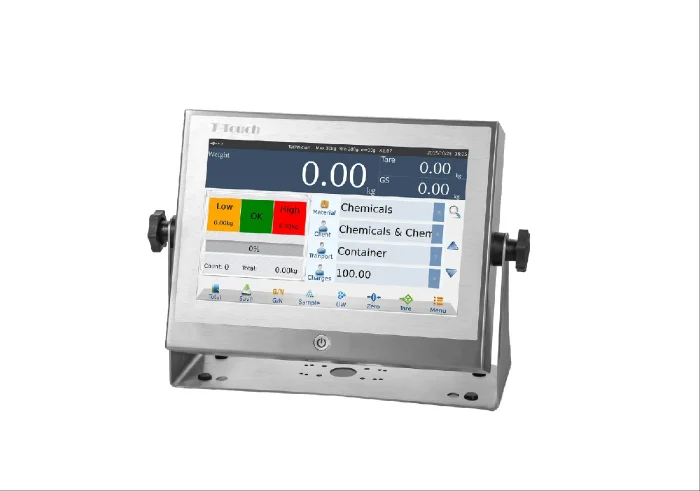

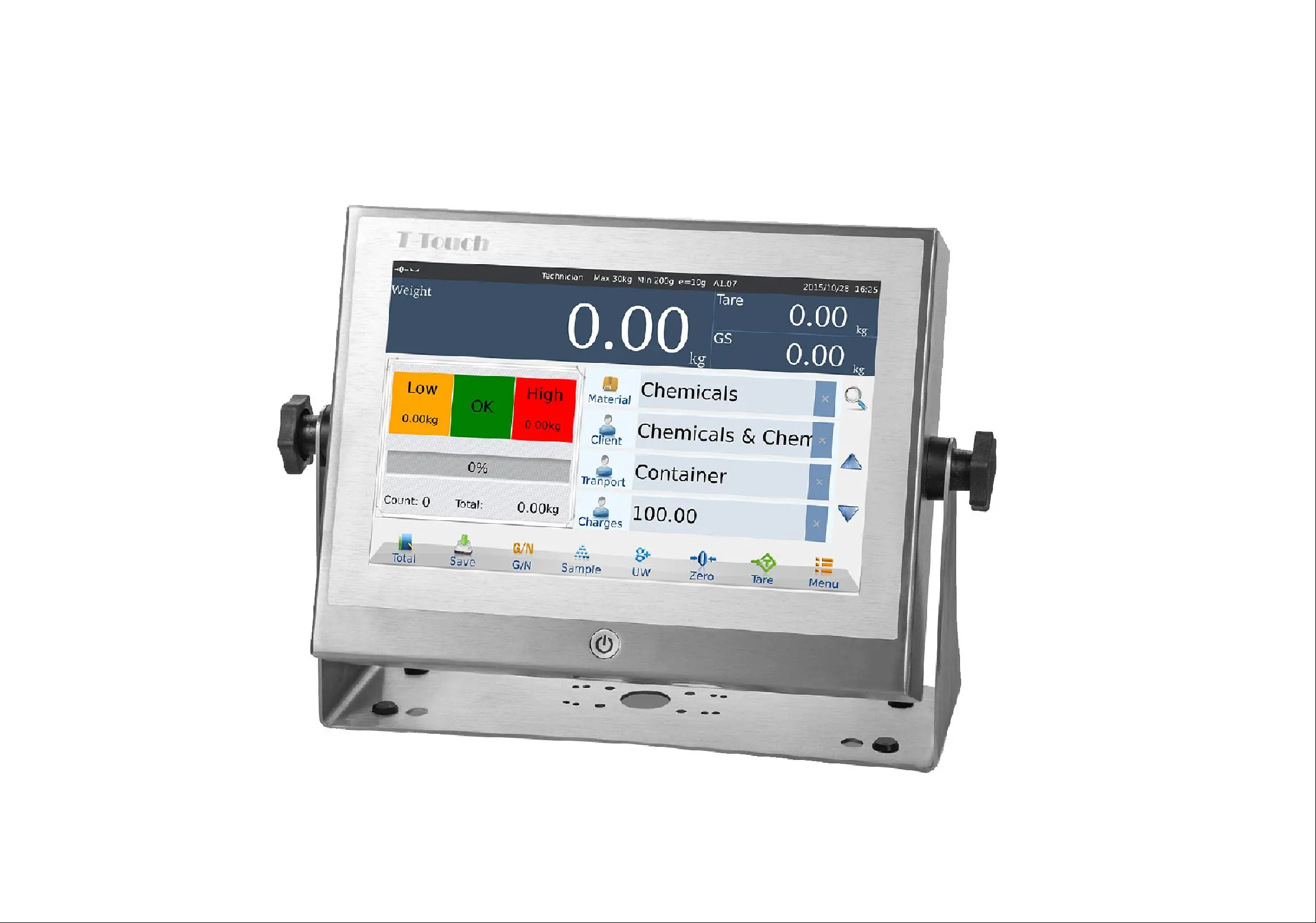

S-10 (TOUCH SCREEN) INDUSTRIAL INDICATOR

  • Intuitive Touch Screen
  • Multi-lingual operation support
  • Data Import/Export
  • USB for easy data transfer
  • Connectivity options: RS232 or Ethernet for Industry 4.0 integration
  • Software Functions
  • 40+ functions including counting, check weighing, and percentage weighing
  • Back Office Management (T-Touch Central)
  • Label and receipt format design
  • Report, product, and device management
Request For Quote

Description

Technical Data

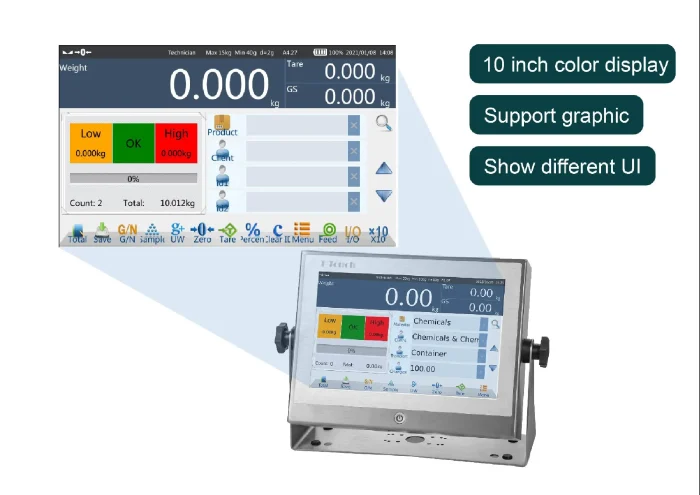

Display: 10.1″ color LCD touch screen
Resolution: 1280×800 px
Power Supply: Input: 100–240V AC, 50/60Hz
Operating Temperature: Range: -10°C to 40°C
Accessories
Keyboard/Mouse Barcode Reader
RS485 (long-distance communication) RS-232 Cables (for printer/PC)
Mini Printer / Label Printer 3-Color Light Tower
Back Office Software Second Platform
Standards Supported
LINUX, USB, RS232, LAN, WLAN
Parameter Model D10 Model S10
Housing Material ABS Plastic Stainless Steel
Dimensions (W×D×H) 310×193×268 mm 315×202×70 mm
Net Weight 4.0 kg 4.8 kg
Max Capacity (nmax) 7500 (or 2×7500 for approved)
30000 (non-approved)
Same as D10
Load Cell Input Resistance 43–1600 ohm Same as D10
Load Cell Excitation Voltage 5V DC Same as D10
Vmin (for approval) 0.5 µV Same as D10
Load Cell Connector 9-pin RS232 Air connector, 7-pin
