EL-D SERIES DIGITAL LOAD CELLS

Request For Quote

Description

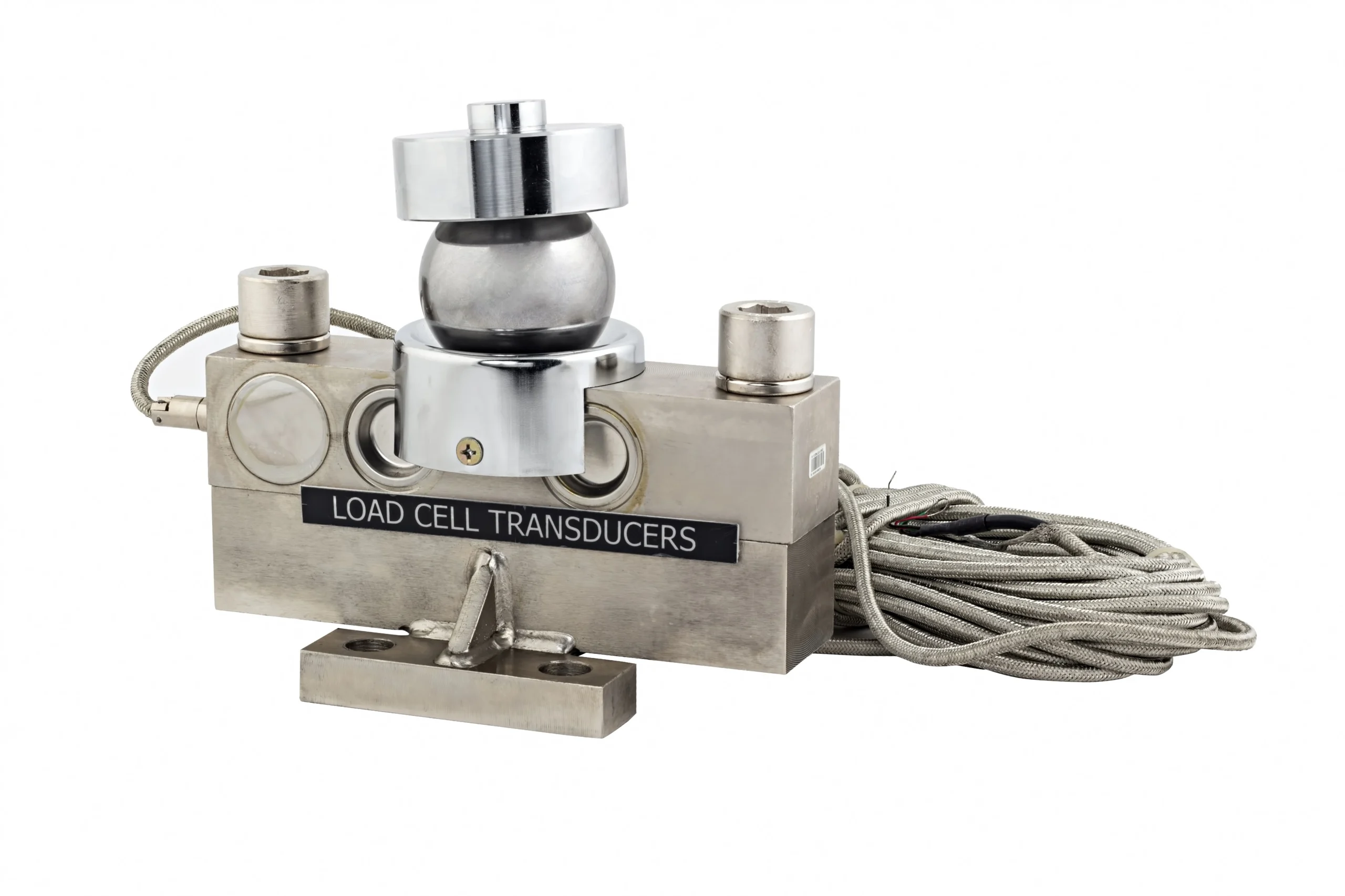

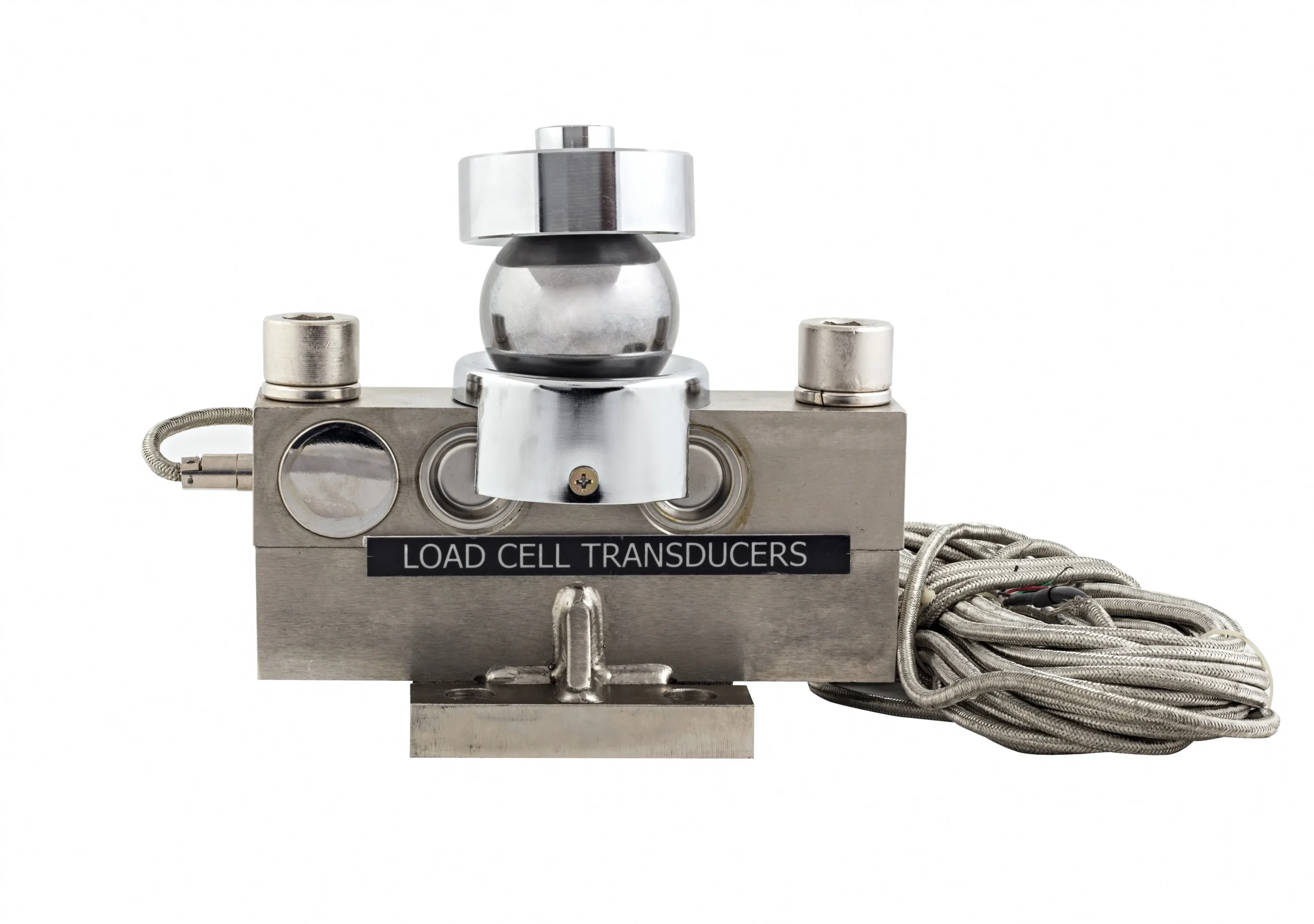

MODEL: EL-D (QS-D) Digital LOAD CELL for Weighbridges & Industrial Applications



Load Cell Model: EL-D (QS-D)
Accuracy Class C3
Capacity 32.5t
Data Conversion Rate 50 measurements per second
Rated Output (Count) 100,000
Excitation Voltage (V EXC DC) 6 – 15
Total Error (%F.S) ≤ 0.020
Communication Interface RS485 / 4 wiring system
Communication Baud Rate (BPS) 19200
Temperature Effect on Output Sensitivity/1Q ±0.011
Maximum Communication Distance 1200
Temperature Effect on Zero Output (%F.S/10) ±0.019
Bus Address R32 Max
Operating Temperature Range R32 Max
Protection Class IP68
Safe Overload Range (%F.S) 150
Ultimate Overload Range (%F.S) 300
Length of Cable 13m (4-Core Shielded Cable)
Lightning Protection Inbuilt
