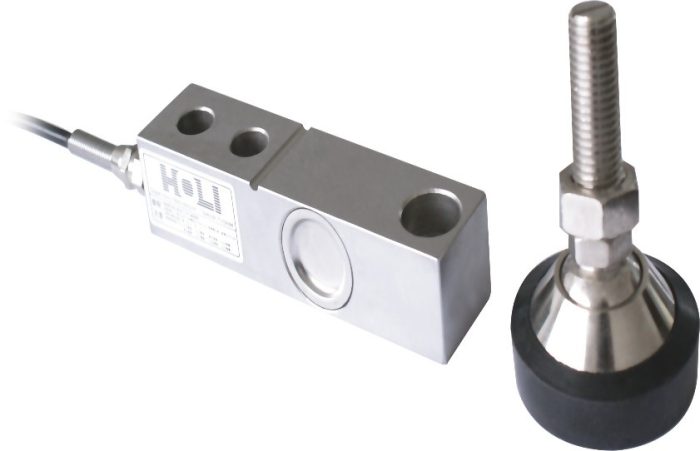

HH8C SHEAR BEAM LOAD CELL

Specifications

  • Alloy Steel Material
  • Suitable for Floor Scales, Tank-hopper Scales & Industrial Applications
  • With Adjustable Feet (with Rubber)
Request For Quote

Description

Load Cell Specifications
Load Rating (Kg) 500 / 1000 / 1500 / 2000
Precision C3
Maximum Division (Nmax) 3000
Minimum Division (Vmin) Emax / 10000
Composition Error (%FS) ≤ ±0.020
Creep Deformation (%FS/30min) ≤ ±0.0016
Temperature Influence on Output Sensitivity (%FS/10℃) ≤ ±0.0011
Temperature Influence on Zero Output (%FS/10℃) ≤ ±0.015
Rated Output (MV/V) 2.0 ±0.2
Input Impedance (Ω) 350 ±3
Output Impedance (Ω) 350 ±3
Insulation Resistance (MΩ) ≥ 5000 (50VDC)
Zero Output (%FS) 1.0
Temperature Compensation Range (℃) -10 ~ +40
Working Temperature Range (℃) -35 ~ +65
Recommended Excitation Voltage (V) 5 ~ 12 (DC)
Maximum Excitation Voltage (V) 18 (DC)
Safety Overload Range (%FS) 120
Limit Overload Range (%FS) 150
