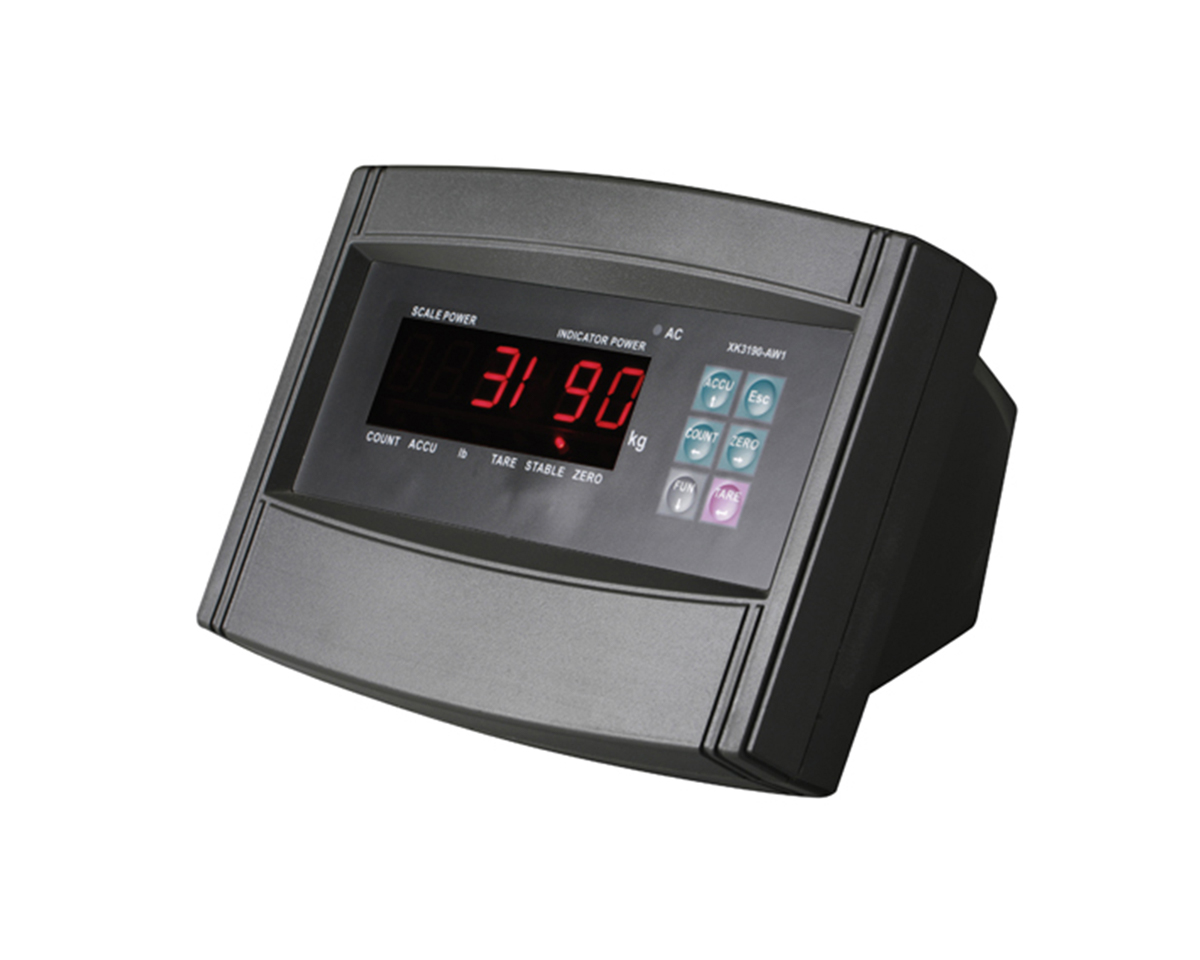

XK3190-AW1 Wireless Digital/Analog Platform Scale Indicator

• Wireless digital/analog platform scale indicator
• Connects with wireless junction box for use
• Applicable in static weighing systems with 1-4 load cells

Standard Functions

• Frequency hopping auto – passes heavy interference frequency bands
• Can be used with WIFI/Bluetooth in same frequency band
• 30 separate communication channels – 30 wireless systems can operate simultaneously

Power Features

• Ultra-low power consumption
• Indicator: 40+ hours continuous use per charge
• Analog junction box: 120+ hours per charge (2+ months standby)
• Digital junction box: 90+ hours per charge (2+ months standby)

Technical Specifications

• Wireless Communication:
• Frequency: 2.4GHz~2.525GHz
• Range: 20m (no obstructions)
• Analog Junction Box:
• Input: -16~18mV
• Load cells: 1-4×350Ω
• Power: 6V/4AH battery (160hrs continuous, 3+ months standby)
• Digital Junction Box:
• Load cells: 1×350Ω (Yaohua protocol)
• Power: 6V/2.8AH battery (120hrs continuous, 2+ months standby)
• Indicator:
• Display: 6-digit LED with 13 status lights
• Interfaces: RS232 (600-19200 baud), mini printer
• Power: AC 187-242V 49-51Hz or DC 6V/4AH (40hrs battery)
