Home » Products » CHECKWEIGHER (COMBI-CHECKWEIGHER AND METAL DETECTOR)

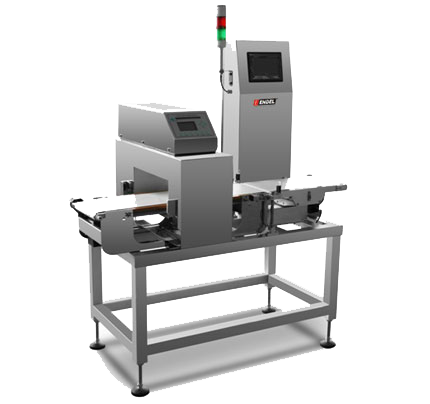

CHECKWEIGHER (COMBI-CHECKWEIGHER AND METAL DETECTOR)

  • Ideal for production lines requiring both check weighing and metal detection in one system.
  • Highly recommended for production lines with space constraints.
  • Automatically checks if packaged goods weight falls within specified ranges.

Key Features

  • Eliminates manual sorting – reduces labor costs while improving efficiency
  • Optimizes production processes through automated weight verification
  • Provides complete process control with customized reports and distribution charts

Focus Industries

  • Sea Food Industry
  • Aquatic & Frozen Products Industry
  • Flour Mills
  • Poultry Processing
Request For Quote

Description

Specification END-EMC-230L END-EMC-300
Detecting Range 20~2000g 20~5000g
Scale Interval 0.1g 0.2g
Accuracy ±0.2g ±0.5g
Detecting Speed (Max speed) 155pcs/min 140pcs/min
Maximum Belt Speed 70m/min 70m/min
The Weighed Product Size (Width) 220mm 290mm
The Weighed Product Size (Length) 350mm 400mm
The Weighed Product Size (Height) 70mm
110mm
140mm
170mm
70mm
110mm
140mm
170mm
Weigher Platform Size (Width) 230mm 300mm
Weigher Platform Size (Length) 450mm 500mm
Weigher Platform Size (Height) 80mm
120mm
150mm
180mm
80mm
120mm
150mm
180mm
Sensitivity (Fe) φ0.5mm
φ0.7mm
φ0.7mm
φ0.7mm
φ0.5mm
φ0.7mm
φ0.7mm
φ0.7mm
Sensitivity (SUS) φ1.2mm
φ1.5mm
φ1.5mm
φ2.0mm
φ1.2mm
φ1.5mm
φ1.5mm
φ2.0mm
Product Storage Quantity 100 kinds 100 kinds
Segments Number of Sorting 2 or 3 2 or 3
Rejecter Rejecter Optional Rejecter Optional
Power Supply AC220V (Optional) AC220V (Optional)
Degree of Protection IP30/IP54/IP66 IP30/IP54/IP66
Body Material Stainless Steel (SUS304) Stainless Steel (SUS304)
