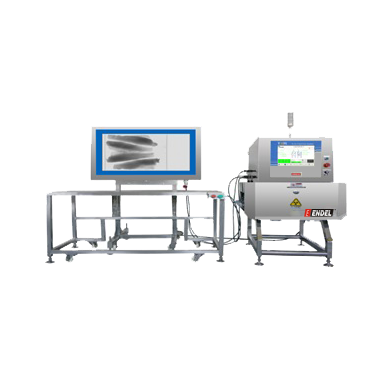

X-RAY FOR FISHERIES
- This system is suitable for in-line inspection of the residual bone fragments in meat processing or poultry industry for detecting residual bone fragments.
- An X-Ray system is an electronic instrument which detects the presence of metallic & non-metallic in packed or loose products. X-Ray system is useful for finding metallic & non-metallic contamination in products.
Features
- This system achieves high sensitivity and inspection rate
- It can identify foreign bodies such as rubber, bone and objects of similar density
- Without any effects of irregular and overlapping products
Focus Industries
- Food Industry
- Pharmaceutical Industry For detection of Non-Metallic Contaminations
Description
| Specification | END-EXR-4080F |
|---|---|
| X-ray Tube | MAX. 80kV, 350W |
| Inspection Width | 400mm |
| Inspection Height | 100mm |
| Best Inspection Sensitivity (without product) |
Stainless steel ball φ0.3mm Stainless wire φ0.2×2mm Glass/Ceramic ball φ1.0mm |
| Conveyor Speed | 10-40m/min |
| Operation System | Windows 7 |
| Protection Method | Soft curtain |
| X-ray Leakage | <1µSv/h (CE Standard) |
| IP Rate | IP66 (Under belt) |
| Working Environment | Temperature: -10~40°C |
| Cooling Method | Industrial air conditioning |
| Rejecter Mode | Sound and light alarm, belt stop (Rejecter optional) |
| Air Pressure | 0.8 Mpa |
| Power Supply | 1.5kVA |
| Main Material | SUS304 |
| Surface Treatment | Mirror Polish/Sand blasting |
